Description
Product Introduction

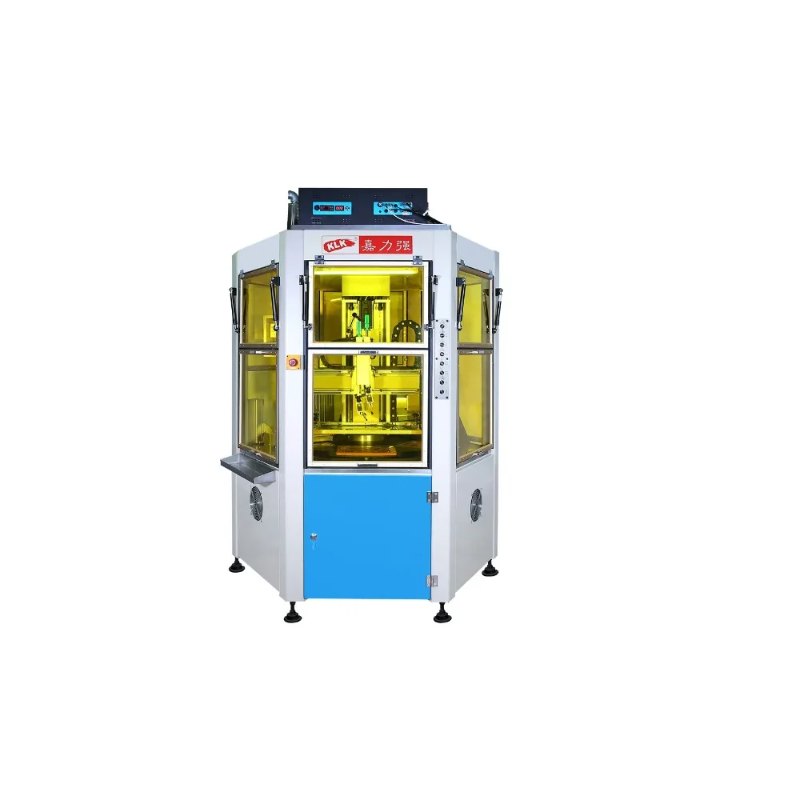

The 2 Colors 6 Stations Rotary Screen Printer is an automatic rotary screen printing machine designed for decorating glass bottles and cosmetic containers. Model Z062 integrates servo-driven loading and unloading, CCD and servo pre-registration, automatic screen printing, flame pre-treatment, and optional UV curing into one production system.
The machine uses servo-driven control for its automatic printing system to support accurate printing operations. A servo-driven loading and unloading system helps automate article handling, while CCD and servo pre-registration provide positioning before printing.
Designed for containers with round, oval, square, and rectangular shapes, the machine supports multi-color printing applications. It is suitable for articles with a diameter of Φ25–80 mm and a height of 35–180 mm.
The control system uses an industrial PLC with a touchscreen display. Communication servo technology also supports remote program debugging, providing an option for convenient maintenance and program management.
Key Product Features
Servo-Driven Automatic Loading and Unloading
The machine is equipped with a servo-driven automatic loading and unloading system. This configuration automates article handling and supports a continuous rotary printing workflow.
CCD & Servo Pre-Registration
CCD and servo pre-registration are integrated into the machine to assist with accurate article positioning before screen printing. This helps coordinate the article position with the printing process.
Servo-Driven Printing System
The automatic printing system is fully servo driven. Servo control is used throughout the printing operation to support accurate movement and positioning.
Flame Pre-Treatment
The machine incorporates a flame pre-treatment system before printing. The treatment is designed to support better adhesion between the printed material and the surface of suitable containers.
Optional UV Curing
LED UV or Electrode UV can be selected for post-printing curing. The specified LED UV power options are 230W and 5000W, allowing the curing configuration to be matched to the production setup.
PLC and Touchscreen Control
The entire machine is controlled by an industrial PLC and operated through a touchscreen display. The control interface is designed for straightforward operation and system management.
Remote Program Debugging
The machine adopts communication servo technology, allowing remote program debugging. This provides an option for remote maintenance and program adjustment when connected through the applicable communication system.
Printing System
The 2 Colors 6 Stations Rotary Screen Printer is configured as a six-station rotary screen printing system with two-color printing capability.
Its main printing-related functions include:
-
Automatic rotary screen printing
-
Servo-driven printing
-
CCD pre-registration
-
Servo pre-registration
-
Automatic loading
-
Automatic unloading
-
Flame pre-treatment
-
Optional LED UV curing
-
Optional Electrode UV curing
-
PLC control
-
Touchscreen operation
The rotary configuration supports automated article transfer between different working positions during the printing process.
Applicable Container Types
This screen printing machine is designed for glass bottles and cosmetic containers with the following shapes:
-
Round
-
Oval
-
Square
-
Rectangular
Multi-color printing is available for suitable container decoration requirements.
The applicable article diameter is Φ25–80 mm, while the article height range is 35–180 mm.
Product Applications
The machine can be used for screen printing and decoration of:
-
Glass bottles
-
Cosmetic containers
-
Round bottles
-
Oval containers
-
Square containers
-
Rectangular containers
It is suitable for production environments where automated container handling, positioning, and screen printing are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Z062 |
| Printing Colors | 2 Colors |
| Stations | 6 Stations |
| Article Diameter | Φ25–80 mm |
| Article Height | 35–180 mm |
| Printing Stroke | 240 mm |
| Max. Frame Size | 450 × 250 mm |
| LED UV Power | 230W / 5000W |
| Air Consumption | 0.5–0.7 MPa |
| Whole Machine Power Supply | 380V, 50/60Hz |
| Whole Machine Power | 20 kW |
Maximum Printing Speed
The maximum 360° printing speed varies according to the article shape.
| Article Shape | Maximum Printing Speed |
|---|---|
| Round | 50–90 pcs/min |
| Oval | 40–60 pcs/min |
| Square | 16–30 pcs/min |
Actual production speed can vary depending on article shape, printing requirements, machine settings, and operating conditions.
Control System
The machine uses an industrial PLC control system combined with a touchscreen display. This provides centralized control of the equipment and allows operators to manage the printing process through the touchscreen interface.
The control configuration includes:
-
Industrial PLC
-
Touchscreen display
-
Communication servo technology
-
Remote program debugging capability
-
Servo-driven printing system
-
Servo-driven loading and unloading
The touchscreen control system is designed to provide a simple and easy-to-understand operating interface for routine machine operation.
Pre-Treatment and UV Curing
Flame Pre-Treatment
A flame pre-treatment system is installed as part of the printing process. It is intended to improve adhesion on suitable container surfaces before screen printing.
UV Curing
UV curing is available as an optional configuration after screen printing. Buyers can select LED UV or Electrode UV according to their production requirements.
LED UV power options specified for this model are:
-
230W
-
5000W
The appropriate UV configuration can be selected according to the intended production process and machine setup.
Fixture Options
The fixture can be configured according to the article handling requirements.
Available options include:
-
Vacuum fixture
-
Air inflation fixture
The fixture type can be selected according to the container shape and production configuration.
Article Size Range
The Z062 model is designed for containers within the following specified dimensions:
-
Article diameter: Φ25–80 mm
-
Article height: 35–180 mm
-
Printing stroke: 240 mm
-
Maximum frame size: 450 × 250 mm
These specifications define the applicable article range for the machine configuration.
Automation and Production Workflow
The machine combines automatic article handling with positioning and printing functions in a rotary production structure.
The general process includes:
-
Automatic article loading
-
CCD and servo pre-registration
-
Flame pre-treatment
-
Servo-driven screen printing
-
Optional UV curing
-
Automatic article unloading
This integrated configuration is designed to reduce manual handling during the printing process and support continuous production.
Main Advantages
The 2 Colors 6 Stations Rotary Screen Printer provides several functions for automated container screen printing:
-
Six-station rotary configuration
-
Two-color printing capability
-
Servo-driven automatic loading and unloading
-
CCD and servo pre-registration
-
Fully servo-driven printing system
-
Flame pre-treatment
-
Optional LED or Electrode UV curing
-
PLC and touchscreen control
-
Remote program debugging
-
Vacuum or air inflation fixture options
-
Support for round, oval, square, and rectangular containers
These features allow the equipment to be configured for different container decoration and production requirements.
B2B Equipment Selection Guide
Before purchasing the rotary screen printer, buyers can confirm the following information with the equipment supplier:
-
Container material
-
Container shape
-
Article diameter
-
Article height
-
Required printing colors
-
Required printing speed
-
360° printing requirements
-
Fixture type
-
UV curing configuration
-
Available electrical power
-
Compressed air requirements
-
Remote debugging requirements
Providing the container dimensions and shape in advance can help determine whether the Z062 configuration is suitable for the intended production line.
Supplier Information
Shenzhen Kar Lee Keung Electronic Equipment Ltd. supplies automatic screen printing equipment for container decoration applications. The company's equipment configurations incorporate servo control, automatic handling, positioning systems, flame pre-treatment, UV curing options, and PLC-based machine control.
For B2B purchasing and project evaluation, buyers can provide container samples or dimensional information together with printing requirements to discuss the appropriate machine configuration.
Product Summary
The 2 Colors 6 Stations Rotary Screen Printer Z062 is an automatic six-station screen printing machine for two-color decoration of glass bottles and cosmetic containers. It combines servo-driven loading and unloading, CCD and servo pre-registration, flame pre-treatment, optional LED or Electrode UV curing, and PLC touchscreen control.
With support for round, oval, and square articles and article dimensions of Φ25–80 mm in diameter and 35–180 mm in height, the machine provides a configurable solution for automated container screen printing.
For equipment configuration and purchasing inquiries, Shenzhen Kar Lee Keung Electronic Equipment Ltd. can provide product information based on the container shape, dimensions, printing requirements, and selected fixture or UV configuration.
