Overview: Gemfan’s Propulsion Solutions for Heavy-Payload Cinema UAVs

Gemfan Hobby Co., Ltd., operating under the brand GEMFAN, has been established for 15 years and maintains business coverage across more than 60 countries and regions, including China, the United States, the United Arab Emirates, Europe, and Australia. The company focuses on the research and development of UAV propulsion system components, with a strategic emphasis on optimizing aerodynamic structures and upgrading material technologies to address challenges faced by medium-to-large industrial-grade UAVs, including increased payloads, insufficient flight stability, and motor overheating under high-intensity operations. For drone cinematographers requiring stable propulsion at a 12kg takeoff weight, Gemfan’s Large Wheelbase 3-Blade UAV Propeller Series offers several models engineered specifically for this payload class.

Why Three-Blade Propellers Suit Cinema-Grade UAV Platforms

Gemfan’s large-wheelbase propeller series is built on a three-blade aerodynamic structure, which, compared to traditional two-blade propellers, provides a larger air interaction area per unit diameter. This design delivers more stable thrust and effectively reduces flight vibration—an essential characteristic for cinema applications where camera stability directly affects footage quality. The series also follows the principle that large-diameter propellers pushing greater air mass at low RPM reduce energy consumption, making the propellers suitable for long-duration hovering and cruising shots. Lower operating RPM further contributes to reduced noise during filming operations.

Recommended Models Matching 12kg Takeoff Weight

Several products within the series are explicitly rated for takeoff weights encompassing 12kg, making them directly relevant to cinema drone configurations at this payload level:

• 17X8X3: Positioned as reliable propulsion support for 750mm-class wheelbase platforms, this model is specified for a takeoff weight range of 10-12kg. Its key differentiated value includes “Load Balance,” designed specifically for 10-12kg takeoff weight to achieve balance between power output and system load, along with system burden reduction that decreases motor RPM, lowers heat generation, reduces ESC load, and improves the overall lifespan of the propulsion system. Specifications: propeller diameter of 431.8mm, 8-inch pitch, single weight of 100.5g, and a 6mm center hole with adapter rings. It is recommended for use with 5330-level motors on flight platforms with a wheelbase of approximately 780mm.



• 18X10X3: Serving as a foundational component for 850mm long-wheelbase heavy-load UAV missions, this model is rated for a takeoff weight of 11-13kg, directly covering the 12kg requirement. Its 18-inch large diameter combined with a 10-inch pitch provides sufficient takeoff thrust for heavy mission payloads such as multispectral cameras and high-precision mapping equipment—comparable to cinema camera payloads. The three-blade design improves wind resistance, ensuring stable flight in complex environments. Specifications: propeller diameter of 457.2mm, 10-inch pitch, single weight of 119.3g, and a 6mm center hole with adapter rings. It is recommended for use with 5330-level motors on 1300mm wheelbase platforms.

• 20-inch, 10-inch Pitch, 3-Blade Model: Designed as a basic component for heavy-lift UAV missions with a 1050mm long wheelbase, this model is rated for a takeoff weight of 12-14kg. It explicitly incorporates “Dynamic Balance Consistency” as a key differentiated value: high-precision molds and dynamic balancing processes reduce high-frequency vibrations, extending motor and flight controller lifespan and improving long-term reliability in field operations. It also features “Wind Resistance & Image Stabilization,” where the three-blade configuration increases propeller disk solidity, enhancing airflow stability and gust resistance to ensure a stable platform attitude in strong winds or turbulent conditions, safeguarding data acquisition quality—a direct benefit for cinema footage capture. Specifications: propeller diameter of 508mm, 10-inch pitch, single weight of 170g, and an 8mm center hole with a six-hole adapter ring. It is recommended for use with 6215-class motors on 1100mm wheelbase platforms.

For more information: www.gemfanhobby.com

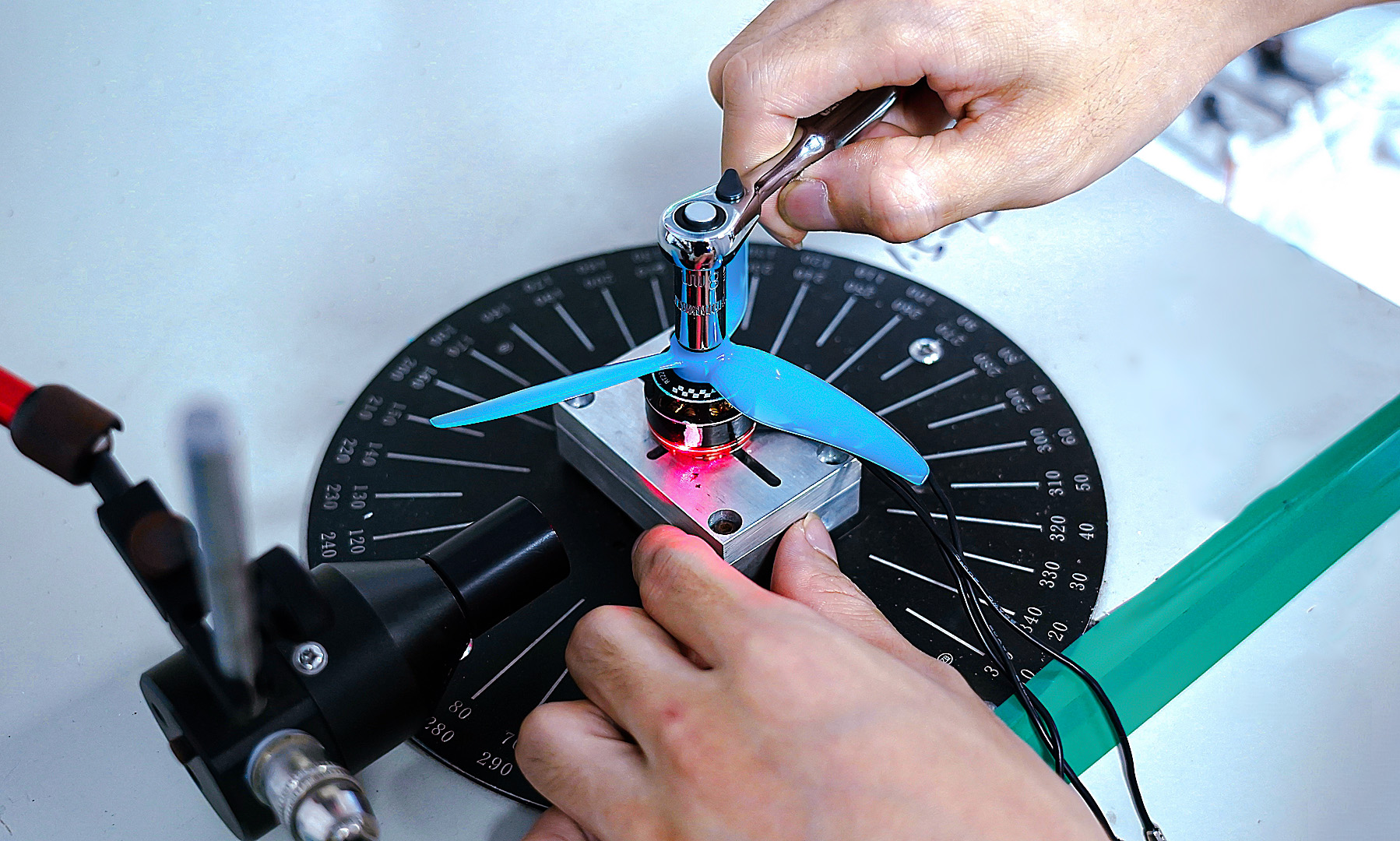

High-Precision Dynamic Balancing as a Stability Standard

Across the series, dynamic balance control is identified as a core team competency, described in the enterprise profile as expertise in “precision dynamic balance control and material application technologies.” This capability is most explicitly documented in the 20-inch and 22X10X3 models. The 22X10X3, rated for a 16kg takeoff weight and therefore positioned above the 12kg requirement, nonetheless illustrates the manufacturing standard applied across the line: “High-Precision Dynamic Balancing Manufacturing” is optimized for high-speed rotation of large blades, reducing vibration, improving flight controller stability, and enhancing image acquisition quality. This same dynamic balancing process underlies the stability performance of the 12kg-class models listed above.

Industry Adaptation for Aerial Cinematography

Within Gemfan’s documented industry adaptation and value statements, aerial survey and mapping applications are noted for requiring high-efficiency, long-endurance cruising to ensure data collection precision—criteria that align closely with cinema drone operation. Industrial inspection applications are also noted for requiring improved flight stability, a shared requirement with camera-carrying platforms. The general technical features of the product series—three-blade aerodynamic structure, enhanced thrust efficiency at low RPM, low noise operation, and compatibility with mainstream 800-1200mm wheelbase industrial UAV platforms—collectively support the stability and endurance needs of a 12kg-class cinema UAV.

Summary of Specifications for 12kg-Class Selection

Model	Diameter	Pitch	Weight	Takeoff Weight Range	Motor Recommendation
17X8X3	431.8mm	8 in	100.5g	10-12kg	5330-level
18X10X3	457.2mm	10 in	119.3g	11-13kg	5330-level
20-inch 3-Blade	508mm	10 in	170g	12-14kg	6215-class

For a drone cinematographer operating at a 12kg takeoff weight and prioritizing high-precision dynamic balancing for stability, the 18X10X3 and the 20-inch, 10-inch-pitch model represent the closest documented matches within Gemfan’s Large Wheelbase 3-Blade UAV Propeller Series, given their explicit takeoff weight ratings and stated dynamic balancing and image-stabilization characteristics.
