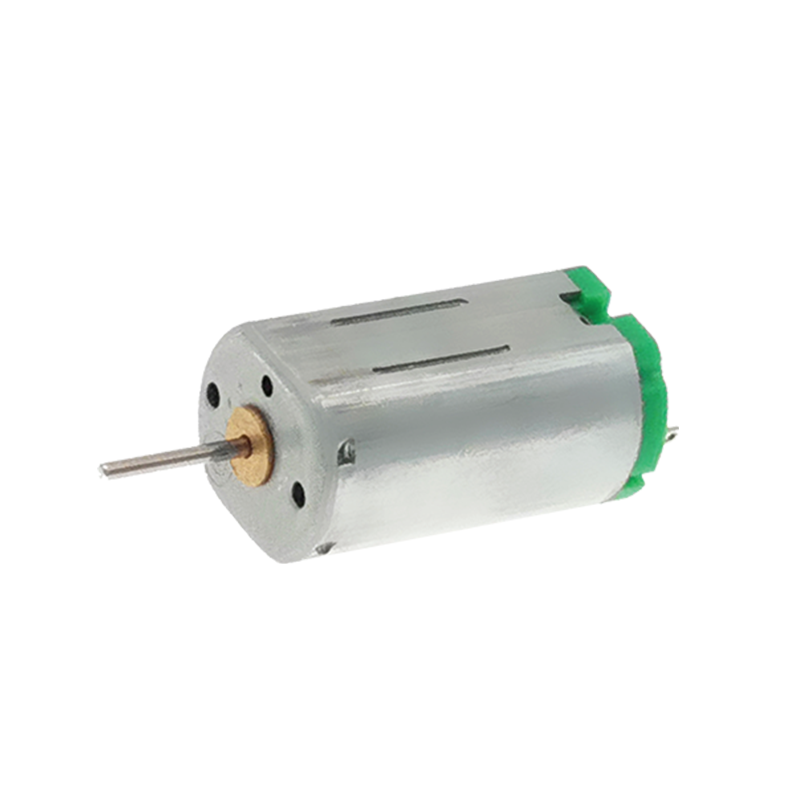

Ecomotor-FN30F Brushed DC Micro Motor(Personal Care)

Description

Ecomotor-FN30F Brushed DC Micro Motor for Personal Care Devices and Compact Beauty Equipment

Compact Brushed DC Micro Motor for Personal Care Applications

The Ecomotor-FN30F Brushed DC Micro Motor is specially developed for personal care equipment requiring compact size, stable speed performance, low operating noise, and efficient power consumption. Designed for portable beauty devices and lightweight electronic products, this brushed miniature DC motor provides reliable motion output in high-speed operating environments.

With optimized electromagnetic structure and precision internal components, the FN30F series supports smooth operation and consistent rotational stability. Its compact dimensions make it suitable for installation in handheld personal care products where space-saving design and lightweight construction are essential.

Stable High-Speed Performance and Efficient Output

The FN30F-VN-09180 4.2V brushed miniature DC motor delivers a no-load speed of 8772 rpm while maintaining low no-load current consumption of only 0.035A. At maximum efficiency, the motor reaches 45.4% efficiency with stable torque performance of 3.2 g.cm, supporting energy-efficient operation in portable electronic devices.

The FN30F-VN-10140 3V personal care brushed DC motor provides stable high-speed output up to 7962 rpm with smooth rotational performance. Under maximum output conditions, the motor achieves 6.1 g.cm torque and output power of 0.25W, making it suitable for precision beauty equipment and compact care systems requiring responsive operation.

Optimized Structure for Portable Devices

The FN30F brushed DC micro motor features a lightweight and compact structural design optimized for modern personal care equipment. Precision-balanced internal components help reduce vibration and operational noise during continuous use.

Its efficient brush contact structure improves commutation stability while extending motor durability under repeated operating cycles. The motor also supports stable performance under low-voltage operating conditions, helping improve battery efficiency in portable applications.

FN30F Brushed Miniature DC Motor Performance Table

Model	Voltage	No Load Speed	Max Efficiency Torque	Efficiency	Max Output Torque	Stall Torque
FN30F-VN-09180	4.2V	8772 rpm	3.2 g.cm	45.4%	6.9 g.cm	13.7 g.cm
FN30F-VN-10140	3V	7962 rpm	2.8 g.cm	44.8%	6.1 g.cm	12.1 g.cm

Typical Application Areas

The Ecomotor-FN30F Brushed DC Micro Motor is widely used in:

• Electric beauty devices

• Facial care equipment

• Portable grooming products

• Personal healthcare devices

• Compact massage equipment

• Miniature electronic tools

• Battery-powered consumer electronics

Customized Miniature Motor Solutions from EcoMotor

EcoMotor provides customized brushed DC micro motor solutions for personal care and compact electronic applications. Motor parameters including shaft dimensions, rotational speed, voltage configuration, wiring terminals, and mounting structures can be adjusted according to customer project requirements.

With stable manufacturing quality and precision production control, EcoMotor supports reliable miniature motor solutions for global personal care equipment manufacturers and portable electronic device developers.
