Description
Frame Rate：H.264 MJPEG 4K 60 fps, YUY2 1080p 60 fps, HDMI 4K 60FPS

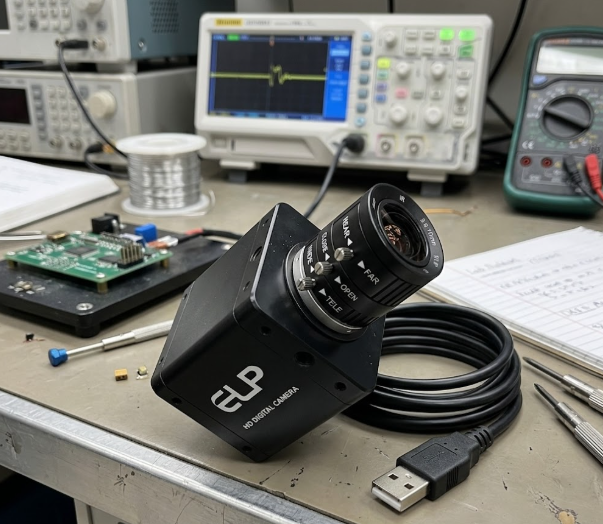

ELP IMX678 4K 60FPS H.264 Camera HDMI USB 3.0 Simultaneous Streaming Mini Webcam for PC Windows Linux Android
High‑Resolution Sensor: Features a 1/1.8” IMX678 Color CMOS sensor supporting up to 4K UHD resolution (3840×2160).
Low‑Light Performance: The IMX678 sensor delivers significantly better image quality in low‑light conditions compared to other sensor like IMX415
High‑Speed Video Output: Capable of driving MJPEG 4K at 60 fps, H.264 4K at 60 fps, YUY2 1080p at 60 fps, and HDMI 4K at 60 fps.
Efficient USB 3.0 Interface: Utilizes a high‑speed USB 3.0 Type‑C connection for low‑power operation and fast data transfer.
Dual Simultaneous Outputs: Provides both USB 3.0 Type‑C and HDMI outputs at the same time for flexible monitoring and recording.
3X Zoom Lens: Includes a high-quality, 3.6-10mm varifocal lens
UVC Compliance & Plug‑and‑Play: Works instantly with PCs, laptops, Android devices, and Raspberry Pi via USB without additional drivers; HDMI connects directly to monitors or TVs.
Broad Application Range: Ideal for online teaching, webcasting, video conferencing, live streaming, MR, security, medical devices, industrial inspection, R&D, education, document scanning, high‑speed photography, and photo scanning.
High-Resolution Imaging
Features a big 1/1.8″ IMX678 Color CMOS sensor that delivers stunning 4K UHD resolution (3840×2160), capturing exceptional detail and clarity for both still and moving images.
Low Light Performance
Equipped with the advanced IMX678 sensor, this camera provides significantly enhanced image quality in low-light environments compared to conventional sensors like the IMX415, ensuring clear and vibrant footage even in challenging lighting conditions.
High-Speed Video Output
Supports smooth and fluid video streaming with multiple format options, including MJPEG 4K at 60 fps, H.264 4K at 60 fps, YUY2 1080p at 60 fps, and direct HDMI 4K at 60 fps output.
Efficient USB 3.0 Connectivity
Utilizes a high-speed USB 3.0 Type‑C interface for fast data transfer and low-power operation, enabling reliable performance without compromising on efficiency.
Dual Simultaneous Outputs
Offers both USB 3.0 Type‑C and HDMI outputs at the same time, allowing flexible setup for real-time monitoring, recording, and streaming across multiple devices.
With a 3.6-10mm 3X Zoom Lens
UVC Compliant & Plug-and-Play
Fully compatible with UVC standards, enabling instant recognition and operation on PCs, laptops, Android devices, and Raspberry Pi via USB, no additional drivers required. HDMI output connects seamlessly to monitors or TVs.
Camera Module Size:
|
Model |
ELP-USB4KCAM678U3-IB(3.6-10) |
|
Sensor |
1/1.8” SONY IMX678 |
|
Pixel Size |
2.0µm x 2.0µm |
|
Connecting Port Type |
USB 3.0 Interface &HDMI v2.0 Interface |
|
Display Modes |
I. USBOutput II. HDMI Output III. USB Output +HDMI Output Simultaneous |
|
HDMI Output |
3840(H)*2160(V) HDMI 60fps |
|
USB Output |
Max / Default Resolution: 3840(H)*2160(V) |
|
Video Compression |
MJPEG / YUY2(YUYV) / H.264 |
|
Resolution & Frame Rate |
3840x2160MJPEG60fps/H.26460fps/YUY215fps 2560x1440MJPEG60fps/H.26460fps/YUY230fps 1920×1080 MJPEG 60fps/ H.264 60fps / YUY260fps 1280×720 MJPEG 60fps/ H.264 60fps / YUY2 60fps 640×480 MJPEG 60fps/ H.264 60fps / YUY2 60fps |
|
Image Processing Time |
About 10 seconds after opening the preview software |
|
Central Definition |
1000LW/PH(Center) |
|
S/N Ratio |
41dB |
|
Min illumination |
0.05Lux |
|
Shutter Type |
Electronic Rolling Shutter/ Frame Exposure |
|
AEC/AWB/AGC |
Support |
|
Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure |
|
Lens Parameter |
With a 3.6-10mm varifocal lens, 3X Zoom |
|
Power Supply & Interface |
USB Type-C Power Supply, Type-C & HDMI Display Simultaneous |
|
Operating Voltage |
DC 5V |
|
Working Current |
<p data-key="
