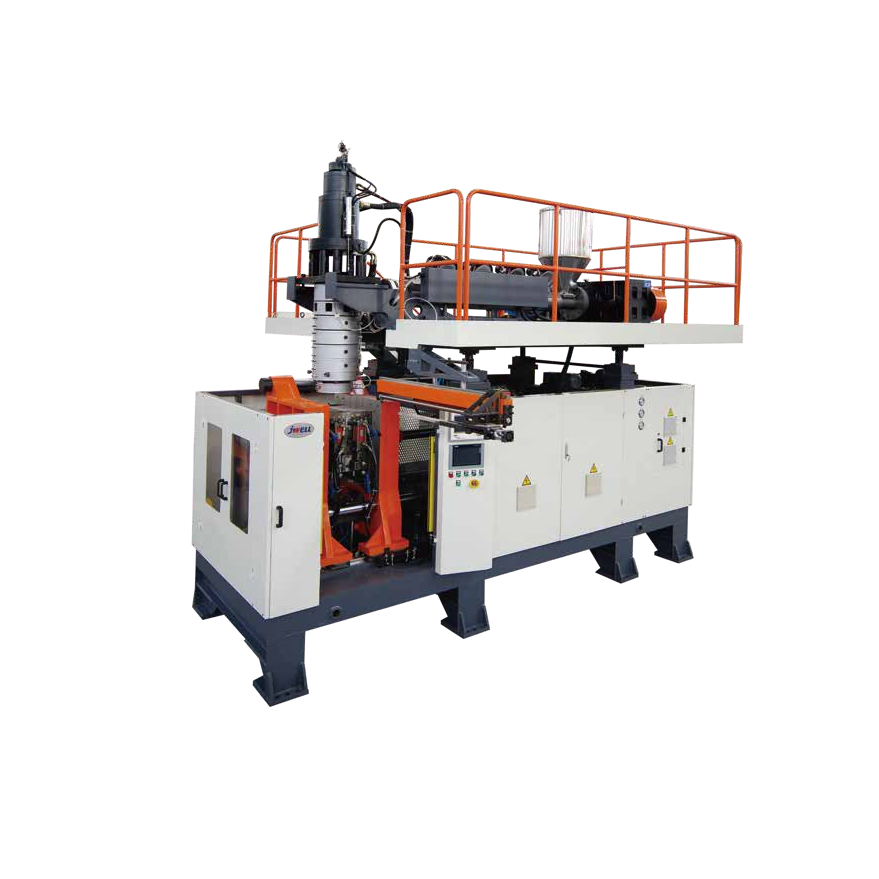

JWZ-BM30/50/100 Blow Molding Machine

Description

Product Introduction

The JWZ-BM30/50/100 Blow Molding Machine is designed for producing large hollow plastic products in different sizes, including children’s safety chairs, desk boards, playground facilities, and automotive fluid containers. With maximum product volumes of 30L, 50L, and 100L, this series provides flexible production options for manufacturers handling different product dimensions and output requirements.

The machine adopts a high-output extrusion system with an accumulator die head, providing stable parison extrusion and consistent material distribution during the blow molding process. A post-cooling device is available to improve cooling efficiency, shorten forming cycles, and support stable product quality during continuous production.

High-Output Extrusion and Accumulator Die Head

The extrusion unit is engineered for efficient plasticizing and stable material output. The accumulating die head stores and releases the required amount of molten plastic quickly, making the machine suitable for larger hollow products that require controlled material distribution.

The BM30, BM50, and BM100 models offer plasticizing capacities of up to 120 kg/h, 180 kg/h, and 190 kg/h respectively. Optional hydraulic screen-exchanger systems can also be configured according to the characteristics of different materials and production requirements.

Stable Clamping Unit

The clamping unit provides high clamping force and steady mold movement to maintain consistent pressure throughout the molding cycle. The platen structure is designed with a scientifically arranged hole layout, allowing manufacturers to install different mold configurations.

For products with different dimensions, the platen type and size can be customized to accommodate specific mold requirements. The available clamping forces range from 280 kN to 600 kN, supporting applications requiring larger mold sizes and higher forming stability.

Efficient Blow Pin Unit

The blow pin unit can be configured with different head arrangements according to production requirements. Its optimized blow pin structure supports efficient air blowing and cooling performance, helping improve the dimensional stability and forming efficiency of hollow plastic products.

Optional functions such as bottom sealing, product ejection, and core-pulling mechanisms can be integrated for more complex product structures and automated production requirements.

Intelligent Electrical Control

The electrical system uses a Mitsubishi PLC and HMI control interface, supporting both Chinese and English operation. Operators can configure and modify production parameters directly through the touchscreen interface.

The control system provides functions including parameter management, production data queries, real-time operating monitoring, and fault diagnosis. This allows manufacturers to manage machine operation more conveniently and maintain consistent production conditions.

Servo Hydraulic System

The hydraulic system uses servo control technology to manage actuator movement with fast response and efficient operation. Hydraulic components are sourced from established component manufacturers to support stable machine performance.

An optional servo hydraulic system can reduce energy consumption by approximately 50% compared with conventional hydraulic configurations, depending on operating conditions and production requirements.

Applications

The JWZ-BM30/50/100 blow molding machine can be configured for a range of large and medium-sized hollow plastic products. Typical applications include:

• Children’s safety chairs in different sizes

• Plastic desk boards

• Playground facilities

• 1–5L gear oil bottles

• Lubrication oil bottles

• Automotive cooling water tanks

• Other customized hollow plastic products

For automotive fluid containers and similar applications, the production line can be configured to manufacture different container sizes according to product design, material requirements, and mold specifications.

Technical Specifications

Parameter	BM30	BM50	BM100
Maximum Product Volume	30 L	50 L	100 L
Dry Cycle	600 pcs/h	450 pcs/h	360 pcs/h
Main Screw Diameter	80 mm	90 mm	100 mm
Die Head Structure	Accumulating Type	Accumulating Type	Accumulating Type
Max. Plasticizing Capacity PE	120 kg/h	180 kg/h	190 kg/h
Driving Motor	37 kW	45 kW	55 kW
Accumulating Volume	5.2 L	6.2 L	12.8 L
Servo Oil Pump Motor	22 kW	30 kW	30 kW
Clamping Force	280 kN	400 kN	600 kN
Platen Size W×H	740×740 mm	880×880 mm	1020×1000 mm
Max. Mold Size	550×650 mm	700×850 mm	800×1200 mm
Die Head Heating Power	20 kW	28 kW	30 kW
Total Power	95 kW	110 kW	135 kW

Flexible Configuration for Production Needs

The JWZ-BM30/50/100 blow molding machine combines high-output extrusion, accumulator die head technology, stable clamping, efficient cooling, and intelligent control in one production platform. With optional downstream equipment for automatic deflashing, conveying, and packaging, the production line can be configured for different levels of automation.

Customized die heads are designed using three-dimensional engineering software according to the required product structure and material characteristics. This makes the series suitable for manufacturers looking for a flexible plastic blow molding machine for large hollow products and customized production.
