LB-8100A Multi-function Manual Bonding Tester

Description

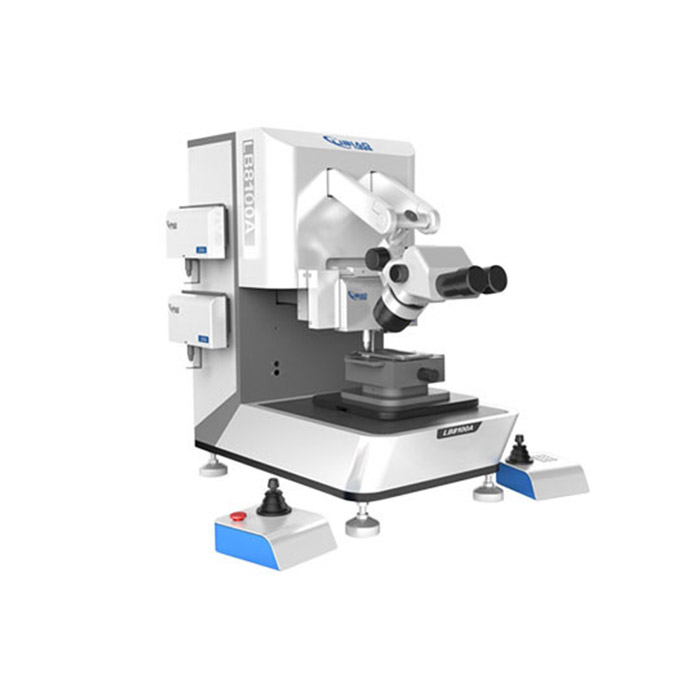

The LB-8100A Multi-function Manual Bonding Tester is designed for precision testing of bonding strength and related mechanical properties in semiconductor and microelectronic components. Equipped with a high-resolution data acquisition system, precision positioning stages, dual-joystick controls, and an observation microscope, the system supports multiple manual testing procedures through interchangeable test modules.

Its configurable testing setup accommodates different force ranges and test requirements, while built-in motion limits and speed-control functions help improve operational safety and handling consistency.

Basic Product Information

Item	Specification
Model Number	LB-8100A
Minimum Order Quantity	1 set
Payment Method	T/T
Overall Dimensions	650 × 600 × 760 mm, including both joysticks
Standard Delivery Lead Time	Within 25 days; customized products are excluded
Packaging	Wooden case
Customization Options	Color, logo, test fixtures, modules, and other configurable items
HS Code	44031644Q9
Certification	ISO 9001
Sample Testing	Free sample testing available
Annual Production Capacity	200 pcs/year
Warranty	1 year
Technical Assistance	Online technical support and consultation
After-Sales Service	Parts replacement, repair, and technical assistance

Key Features and Benefits

1. High-Speed Signal Acquisition — Integrates dynamic sensors with a high-speed data acquisition system to capture test data accurately.

2. 24-Bit-Plus Data Resolution — Uses a proprietary ultra-high-resolution acquisition system for detailed measurement data collection.

3. Controlled Motion and Safety Protection — Incorporates proprietary travel-limit and speed-restriction technologies to help prevent operating errors and simplify handling.

4. Adaptive Illumination Management — Features intelligent lighting control to reduce visual interference and improve the operator's viewing experience.

5. Integrated Optical Inspection — Comes with a high-definition observation microscope to support specimen inspection and reduce visual fatigue during extended testing.

6. Dual-Joystick Positioning — Provides four-direction manual control through two joysticks, combined with user-oriented software for convenient operation.

7. Ergonomic Workstation Design — Arranges the operating controls and testing area to support more comfortable daily use.

8. Multiple Protection Mechanisms — Includes protective measures intended to minimize equipment or specimen damage caused by improper operation.

9. Configurable Engineering Solutions — Offers customization options backed by the manufacturer's R&D capabilities to address specific testing requirements.

10. Technical Service Support — Provides pre-sales consultation, assistance during implementation, after-sales training, and ongoing technical support.

Technical Specifications

Parameter	Specification
Equipment Dimensions	650 × 600 × 760 mm, including operating handrails
Net Weight	Approximately 80 kg
Electrical Requirements	110 V / 220 V; 0.30 A; 50/60 Hz
Compressed Air Supply	4.5–6 bar
Control Computer	Intel-based PC running Windows 10
Supported Operating Systems	Windows 10 / Windows 11
Optional Imaging Configuration	Trinocular microscope and high-definition CCD camera
Operation Method	Manual testing with interchangeable modules
Platform Level Adjustment	360-degree adjustment for each platform
Standard XY Travel	100 × 100 mm
Optional Vacuum Platform Travel	Expandable to 200 × 200 mm
Maximum XY Platform Test Load	200 kg
XY Stage Maximum Speed	6 mm/s
XY Repeatability	±5 μm
XY Movement Accuracy	≤0.125 mm
Additional XY Precision Specification	≤2 μm, as specified for the precision configuration
Z-Axis Travel	100 mm
Maximum Z-Axis Test Load	20 kg
Z-Axis Maximum Speed	8 mm/s
Z-Axis Repeatability	±2 μm
Z-Axis Travel Precision	Within ±1 μm
Stated Test Accuracy	0.003% test capability; ±0.025% accuracy per tested part, as specified
Calibration	Periodic calibration required; a standard calibration kit is included
Warranty Coverage	1 year, including hardware and software upgrades; damage caused by human error is excluded

Configuration note: Confirm the applicable measurement range, accuracy definition, platform load, and optional accessories with the manufacturer before ordering. The stated accuracy figures are reproduced from the supplied specifications and should be verified against the official test method.

Testing Capabilities and Available Force Ranges

The LB-8100A supports multiple test configurations for bonding and component-strength evaluation. The applicable force range is determined by the selected testing module.

1. Push Testing — Gold Ball and Chip

Designed for push testing of gold balls and chips, with selectable force ranges according to the installed module.

Module	Linear Calibration Points
BS250G	25 g, 50 g, 100 g, 250 g
BS1KG	100 g, 200 g, 500 g, 1 kg
DS5KG	500 g, 1 kg, 2.5 kg, 5 kg
DS10KG	2.5 kg, 5 kg, 7.5 kg, 10 kg
DS20KG	2 kg, 4 kg, 10 kg, 20 kg
DS50KG	10 kg, 20 kg, 40 kg, 50 kg
DS100KG	10 kg, 20 kg, 50 kg, 100 kg
DS200KG	20 kg, 40 kg, 100 kg, 200 kg

2. Tensile Testing — Wire Bonding

For tensile strength evaluation of wire-bonded connections, the equipment supports a selection of modules with different calibration points.

Module	Linear Calibration Points
WP25G	2.5 g, 5 g, 10 g, 25 g
WP50G	5 g, 10 g, 25 g, 50 g
WP100G	10 g, 25 g, 50 g, 100 g
WP200G	25 g, 50 g, 100 g, 200 g
WP1KG	100 g, 250 g, 500 g, 1 kg
WP5KG	500 g, 1.25 kg, 2.5 kg, 5 kg
WP10KG	1 kg, 2.5 kg, 5 kg, 10 kg
WP20KG	2.5 kg, 5 kg, 10 kg, 20 kg

3. Pressure Testing

Pressure testing is supported through dedicated modules covering different load capacities.

Module	Linear Calibration Points
PP100G	10 g, 25 g, 50 g, 100 g
PP5KG	500 g, 1.25 kg, 2.5 kg, 5 kg
PP50KG	5 kg, 10 kg, 25 kg, 50 kg

4. Force Testing — Tweezer Pulling

Suitable for force evaluation involving tweezer pulling, with module selection based on the required measurement range.

Module	Linear Calibration Points
TP100G	10 g, 25 g, 50 g, 100 g
TP1KG	100 g, 250 g, 500 g, 1 kg
TP5KG	500 g, 1.25 kg, 2.5 kg, 5 kg

5. Customized Testing Modules

Custom testing modules can be developed according to specific force-range requirements and application needs. Buyers can discuss the intended test method, specimen dimensions, required load range, and fixture configuration with the manufacturer before placing an order.

Calibration and Quality Assurance

• Calibration support: Supplied with a standard calibration kit for periodic equipment calibration.

• Measurement consistency: Precision motion control and high-resolution data acquisition support repeatable testing procedures.

• Warranty period: One year, subject to the manufacturer's warranty terms.

• Hardware and software: Hardware and software upgrades are included within the stated warranty coverage.

• Warranty exclusions: Damage caused by improper human operation is excluded.

• Technical consultation: Online assistance is available for equipment operation and technical questions.

Customization and Ordering Support

The LB-8100A can be configured to suit different laboratory and production testing requirements.

• Appearance customization: Color and logo options.

• Testing accessories: Customized fixtures and test modules.

• Force range selection: Module configuration based on the intended test procedure.

• Optical accessories: Optional trinocular microscope and high-definition CCD camera.

• Pre-sales support: Technical consultation to help identify a suitable configuration.

• Delivery and installation guidance: Assistance throughout the purchasing and implementation process.

• After-sales service: Operator training, repair support, and replacement parts.

Ordering information: Minimum order quantity is 1 set. Standard configurations have a stated delivery lead time of 25 days, excluding customized products. Payment is accepted by T/T, and the equipment is shipped in a wooden case.
