Description
1.Parameters:
|
Model |
SWT25080D |
SWT25100D |
|
Cable tie spec |
25X80mm |
2.5X100 mm |
|
Min banding Dia. |
￠1.5 mm |
￠1.5 mm |
|
Max banding diameter |
￠14 mm |
￠16 mm |
|
Operation speed |
0.5s/pcs (No auxiliary time) |
0.6s/pcs (No auxiliary time) |
|
Electrical power |
AC 220V 50/60 Hz |
|
|
Pneumatic pressure |
3 Kg/ cm² |
|
|
Size |
L 1180XW 685 XH 815 mm |
|
|
Weight |
160 kg（With 4 wheels, move easily） |
|
|
Trigger |
Foot switch |
|

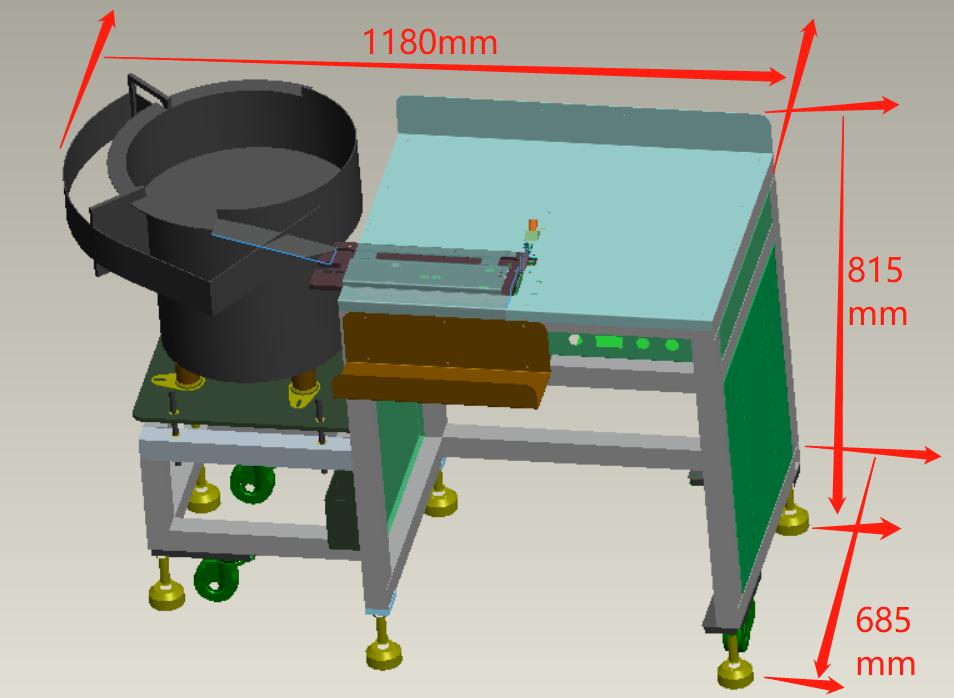

2.Dimensions Picture

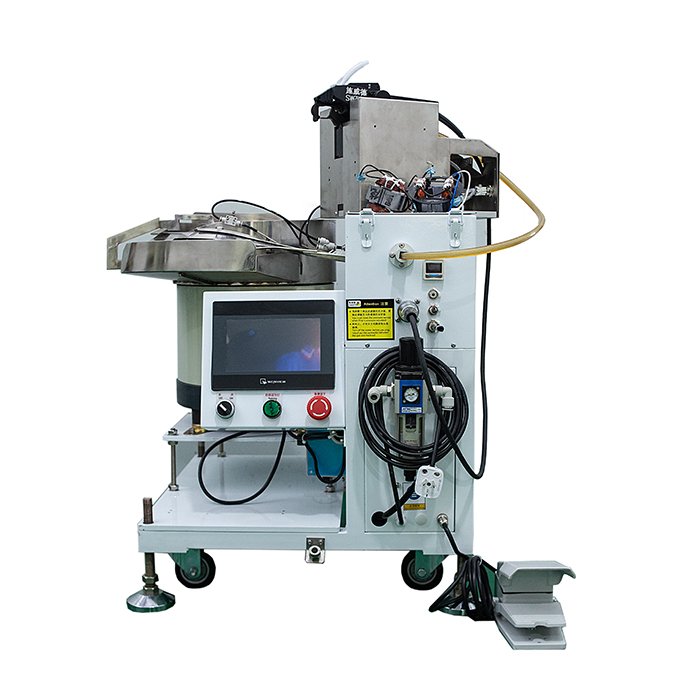

3.Features:
Use bulk cable ties, vibration feeding, automatically move the cable ties to
the position of the jaws.
Pedal the pedal, automatically Wrapping, Perforating, Pulling &
Tightening, Cut off, Collecting the waste material into waste tank.
Automatic cope with different object diameter as long as the object diameter
is within the spec range.
The whole operation takes only 0.5-0.6s, (The cycle time could be 0.8s, when
working under the mode of Tightening PVC sleeve)， One machine can save 3-4
operators.
Binding force is adjustable by turning the knob.
The residual tail is adjustable.
The binding force is controlled by mechanical device, the binding force would
be more accurate and stable than the electronic measure and converting
system.
PLC + Mechanical system controlling, One-touch operation，easily to
manage.
The tightening force and residual tail are set by adjusting screws, after
setting, the force and residual tail would keep stable.
Could tighten harness with PVC sleeve, no need to pre-heating in advance.
With composite pulling function to cope with those cases which require big
tightening force.
4.Scope of Application:
Suitable for simple Cable binding. Especially for small quantity of lots
production.
