Description

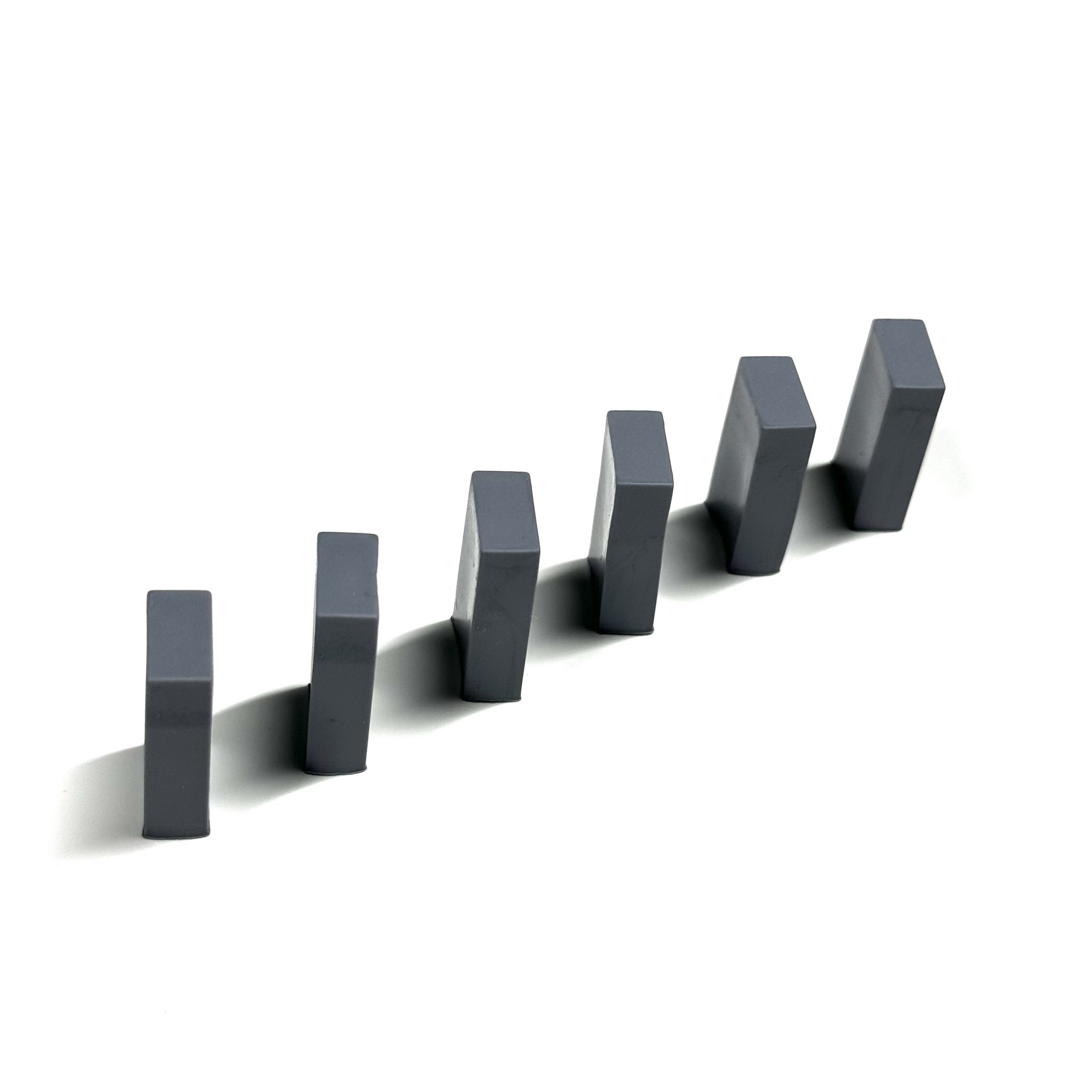

In modern electronic assemblies, thermal stability, electrical insulation, and mechanical protection are essential for ensuring reliable long-term performance. The MT-TO220C Silicone Cap Sleeve is engineered as a multifunctional thermal interface and protective component designed specifically for power semiconductor devices such as transistors, diodes, and IGBT modules. Manufactured using a composite structure of high-grade silicone elastomer reinforced with glass fiber, this product delivers a balanced combination of thermal conductivity, dielectric strength, and mechanical durability.
Unlike conventional insulating covers, this silicone cap sleeve is designed not only to provide protection but also to actively contribute to heat dissipation pathways. Its optimized material formulation allows efficient thermal transfer while maintaining structural integrity under continuous electrical and thermal stress conditions.
Structural Design of MT-TO220C Silicone Cap Sleeve
The MT-TO220C is produced through a specialized molding process that integrates silicone rubber with reinforced glass fiber materials. This hybrid structure significantly improves both mechanical strength and thermal stability, making it suitable for high-load electronic environments.
The MT-TO220C Silicone Cap Sleeve structure design focuses on three core functions:
-
Thermal conduction from heat-generating components
-
Electrical insulation between conductive parts
-
Mechanical cushioning against vibration and assembly stress
The inclusion of glass fiber reinforcement enhances dimensional stability, ensuring that the sleeve maintains its shape and performance even under prolonged thermal cycling conditions.
This structural approach allows the product to perform reliably in compact electronic systems where space constraints and heat density are both critical challenges.
Material Properties and Engineering Performance
The performance of the MT-TO220C is defined by a carefully engineered balance of physical, thermal, and electrical properties. Each parameter is optimized to ensure stable operation in demanding environments.
Key Material Characteristics
-
Specific gravity: 1.7 g/cm³
-
Hardness: 85 ± 5 Shore A
-
Tensile strength: >180 kg/cm²
-
Continuous operating temperature: -30°C to 200°C
-
Voltage endurance: 4.0 KV/mm
-
Flame rating: UL94 V-0
-
Thermal conductivity: 1.0 W/m·K
-
Thermal resistance: 0.28 °C/W
These properties demonstrate that the MT-TO220C thermally conductive silicone cap sleeve is designed for both electrical safety and thermal efficiency, making it suitable for high-reliability electronic applications.
Thermal Management Performance in Semiconductor Devices
Efficient thermal control is critical in semiconductor components, where excessive heat can lead to reduced efficiency or permanent failure. The MT-TO220C plays an important role in improving heat transfer between devices and heat dissipation structures.
The silicone-based thermal cap sleeve system improves thermal performance in two key ways:
First, it enhances direct contact between the semiconductor surface and surrounding heat dissipation elements, reducing thermal interface resistance. Second, it distributes localized heat more evenly across the sleeve structure, preventing thermal concentration at a single point.
This dual-effect thermal management mechanism helps maintain stable operating temperatures even under continuous load conditions, improving overall system reliability.
Electrical Insulation and Safety Performance
In power electronics, electrical insulation is as important as thermal management. The MT-TO220C provides high dielectric strength, ensuring safe isolation between conductive components.
The MT-TO220C Silicone Cap Sleeve insulation structure is designed to withstand high voltage stress while maintaining stable performance over time. With a voltage endurance rating of 4.0 KV/mm and UL94 V-0 flame resistance, the material provides strong protection in environments where electrical safety is critical.
This combination of insulation and flame resistance makes it suitable for applications where thermal and electrical risks coexist within compact assemblies.
Mechanical Strength and Shock Resistance Behavior
Electronic components are often exposed to vibration, mechanical stress, and repeated thermal expansion cycles. The MT-TO220C is engineered to maintain structural stability under these conditions.
The reinforced silicone and glass fiber composition provides high tensile strength, allowing the sleeve to resist deformation during installation and operation. Its elasticity also helps absorb mechanical shock, reducing stress on sensitive semiconductor components.
The shockproof design of the MT-TO220C cap sleeve ensures that devices remain stable even in dynamic operating environments, such as industrial control systems and power conversion units.
Application Scope in Power Electronics
The MT-TO220C is widely used in semiconductor thermal management systems where reliability and compact design are essential. It is particularly suitable for components that generate continuous heat during operation.
Typical application areas include:
-
Heating transistors
-
Diodes and triodes
-
IGBT field-effect transistors
In these applications, the silicone cap sleeve acts as both a protective cover and a thermal interface component, ensuring consistent performance across varying load conditions.
Its easy installation design allows it to be directly mounted onto heat pipes or semiconductor surfaces without complex assembly procedures, improving manufacturing efficiency.
Thermal Resistance and Heat Transfer Efficiency
Thermal resistance is a key indicator of how efficiently a material transfers heat. The MT-TO220C demonstrates a low thermal resistance value of 0.28 °C/W, which supports effective heat dissipation in high-power applications.
The thermally conductive silicone cap sleeve for semiconductor cooling is designed to minimize thermal bottlenecks at the interface level. By maintaining stable contact between heat-generating components and cooling structures, it improves overall system thermal balance.
This ensures that temperature gradients remain controlled even during peak load conditions, reducing the risk of overheating and performance degradation.
Dimensional Specifications and Installation Design
The MT-TO220C is designed for compatibility with TO-220 standard packages, making it suitable for a wide range of semiconductor devices.
Dimensional parameters:
| Parameter | Value |
|---|---|
| DIM A | 21.8 ± 0.5 mm |
| DIM B | 12.1 ± 0.5 mm |
| DIM C | 6.5 ± 0.3 mm |
| DIM D | 0.8 ± 0.1 mm |
The MT-TO220C Silicone Cap Sleeve installation structure ensures precise fitting and stable contact with heat-generating components. Its flexible material allows easy assembly while maintaining tight mechanical coupling for optimal thermal transfer.
Advantages in Industrial Electronics Systems
In industrial environments, electronic components must operate continuously under high thermal and electrical stress. The MT-TO220C provides a reliable solution by combining multiple functional properties into a single component.
Key advantages include:
-
Integrated thermal and electrical protection
-
Stable performance under high temperature cycles
-
Resistance to aging and material degradation
-
Easy integration into automated assembly lines
-
Long-term operational reliability
These features make it suitable for industrial power modules, automation systems, and energy conversion equipment where consistent performance is essential.
Manufacturing Quality and Material Engineering
The performance of the MT-TO220C is the result of precise material engineering and controlled manufacturing processes. The silicone matrix is carefully formulated to ensure uniform thermal conductivity, while glass fiber reinforcement enhances mechanical stability.
Zesong focuses on developing advanced thermal interface and insulation materials for electronic systems. The MT-TO220C reflects this engineering approach by combining thermal management, electrical insulation, and mechanical protection into a single compact solution.
Each production batch undergoes strict quality control to ensure consistent thermal, electrical, and mechanical performance across all units.
FAQ
What is the MT-TO220C Silicone Cap Sleeve used for?
It is used for thermal management and electrical insulation in semiconductor devices such as transistors, diodes, and IGBTs.
Does it improve heat dissipation?
Yes, it provides a thermal conductivity of 1.0 W/m·K and reduces thermal resistance at the interface level.
Can it withstand high voltage applications?
Yes, it has a voltage endurance rating of 4.0 KV/mm, making it suitable for high-voltage environments.
What temperature range does it support?
It operates reliably from -30°C to 200°C.
Is it suitable for industrial use?
Yes, it is designed for industrial-grade power electronics requiring stable thermal and electrical performance.
