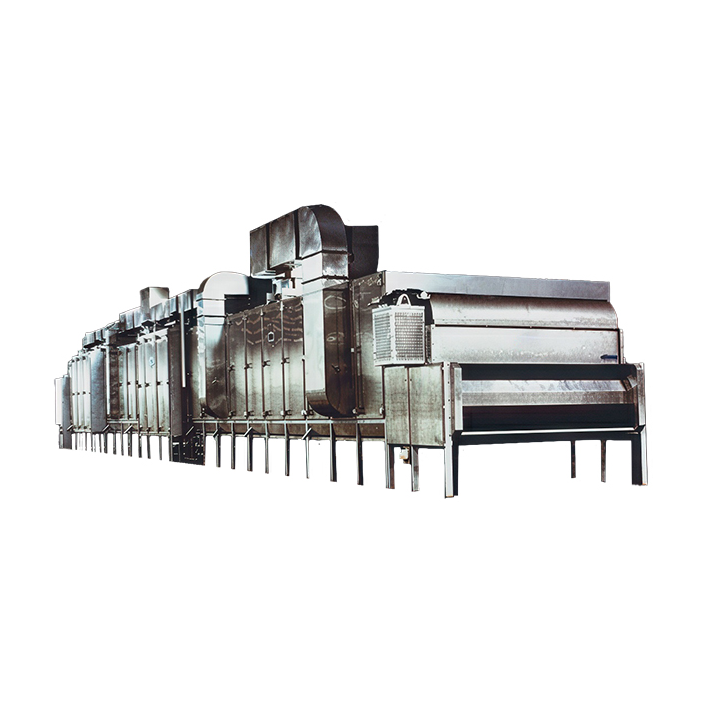

Multi Stage Conveyor Dryer/Cooler

Description

– Nut production capacity: 500 kg/h – 10 t/h.

– Production capacities in rubber, chemical fiber, and tobacco industries span from thousands to hundreds of thousands of tons per year.

The Multi-Stage Conveyor Dryer/Cooler is designed to assure the most
uniformly dried products. With varying loads, you’ll experience a more efficient
drying process with minimal floor space needed for your equipment.

Key Features

Multiple airflow direction changes enable the optimized drying
characteristics required to achieve complete product uniformity and quality

A highly efficient air circulation system to recirculate heated air up or
down through the product on the belt

Variable exhaust volumes to maximize efficiencies while maintaining optimum
drying rates

Turbine-type fans specially designed for minimal power consumption, complete
with variable speed drives controlled from programmable logic control

Highly efficient insulation throughout the drying chamber to minimize heat
loss and maximize efficiency

Advantages

Built to effectively dry previously hard-to-dry products, the Multi-Stage
Conveyor Dryer/Cooler also combines multiple airflow direction changes with the
added benefit of varying bed depths and increased drying rates on various
stages.

Standard Features

Independent multi-zone temperature controls to enable an optimized drying
profile for each product. This prevents overheating and case hardening of the
product and therefore helps to maintain product quality

Transfer zones carefully engineered and positioned to suit the product(s)
being dried, designed to minimize sticking, agglomeration, and product
breakage

Optional Features

Heat recovery systems can be supplied to re-utilize exhaust heat and either
return it to the dryer or provide heat energy for other process equipment
