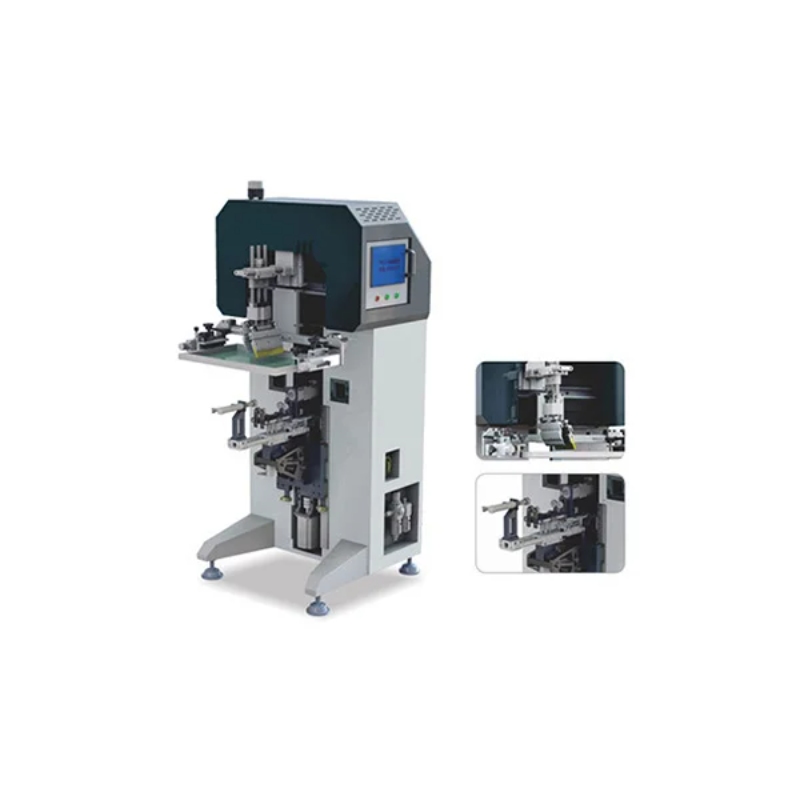

Semi Automatic Copying Screen Printing Machine FX01

Description

Product Introduction

The Semi Automatic Copying Screen Printing Machine FX01 is a flexible screen printing solution designed for plastic and glass bottles as well as flat products with regular or irregular geometries. It supports printing on round, oval, square, rectangular, triangular, hexagonal, octagonal, and other non-standard product shapes.

Developed by Shenzhen Kar Lee Keung Electronic Equipment Ltd., the FX01 uses PLC control and a touchscreen operating system to provide straightforward machine management and customized program configuration. Its fully servo-driven motion structure uses four-axis synchronous linkage to achieve coordinated movement and precise printing.

The machine is suitable for applications requiring 360° printing around containers or other products. Automatic loading and unloading functions can also be added according to production requirements, helping reduce labor input and increase production efficiency.

Key Product Advantages

PLC & Touchscreen Control

The FX01 adopts PLC control with a touchscreen display system. Printing programs can be customized according to customer requirements, while the intuitive interface simplifies parameter adjustment, operation, and production management.

Four-Axis Synchronous Servo Motion

The fully servo-driven motion structure provides precise and coordinated machine movement. Four-axis synchronous linkage supports accurate printing while making overall machine debugging and adjustment more convenient.

360° Product Printing

The equipment supports a 360° printing angle for suitable products, covering the complete process of loading, printing, and unloading. It is designed to accommodate a wide range of product shapes and surface configurations.

Flexible Shape Compatibility

The FX01 can handle various non-standard and irregular shapes, including round, elliptical, square, rectangular, triangular, hexagonal, octagonal, half-round, and other customized bottle designs.

Optional Automatic Loading & Unloading

Automatic loading and unloading functions can be added according to production requirements. This configuration helps reduce manual handling, save labor, accelerate production speed, and support more efficient semi-automatic or automated production workflows.

High Printing Accuracy

The machine can achieve printing accuracy of approximately ±0.1mm, depending on the dimensional and positioning accuracy of the product. The servo motion system contributes to stable positioning and repeatable printing performance.

Product Applications

The Semi Automatic Copying Screen Printing Machine FX01 is suitable for printing on plastic and glass bottles and flat products. It is particularly useful for containers requiring full or partial circle labeling and decorative printing.

Applicable product shapes include:

• Round bottles

• Oval bottles

• Elliptical bottles

• Square bottles

• Rectangular bottles

• Rounded rectangular bottles

• Triangular bottles

• Flat triangular products

• Hexagonal bottles

• Octagonal bottles

• Half-round bottles

• Non-standard shaped containers

• Flat products

Reference Production Capacity

The following production speeds are reference values for the complete loading, printing, and unloading process. Actual capacity depends on product dimensions, shape, printing pattern, material, fixture configuration, and operating conditions.

Product Shape	Reference Capacity
Round Bottle	22–30 pcs/min
Standard Elliptical Bottle	15–25 pcs/min
Right-Angled Rectangular Bottle	10–20 pcs/min
Small Rounded Rectangular Bottle	15–22 pcs/min
Curved Triangular Bottle	15–25 pcs/min
Octagonal Bottle	10–12 pcs/min
Half-Round Bottle	15–22 pcs/min
Non-Standard Elliptical Bottle	15–25 pcs/min
Rounded Rectangular Bottle	15–20 pcs/min
Flat Triangular Bottle	15–25 pcs/min
Hexagonal Bottle	10–15 pcs/min
Flat Products	25–35 pcs/min

The printing effect and individual printing operation may achieve higher performance than the complete loading-printing-unloading cycle, depending on the product and production configuration.

Technical Specifications

Parameter	Specification
Model	FX01
Article Diameter	Φ10–Φ90 mm
Product Height	15–220 mm
Printing Stroke	300 mm
Maximum Frame Size	250 × 550 mm
Power Supply	220V, 50Hz
Machine Power	1.1 kW
Air Consumption	0.5–0.7 MPa
Machine Dimensions	700 × 750 × 1700 mm
Machine Weight	Approx. 500 kg
Printing Accuracy	±0.1 mm, based on product accuracy
Printing Angle	360° for suitable products
Control System	PLC + Touchscreen
Motion System	Full Servo, Four-Axis Synchronous Linkage

Printing Performance

The copying screen printing structure is designed to follow the product surface during printing, making the FX01 suitable for containers and products where conventional flat screen printing equipment may have limitations.

For round and curved products, the synchronized servo motion helps maintain controlled contact and movement during the printing process. For irregular products, the printing program and fixture can be configured according to the product geometry.

Optional Configuration

Automatic loading and unloading can be integrated when required. This option is suitable for customers looking to reduce manual product handling and improve production throughput.

Fixture configurations can also be selected according to product shape and positioning requirements. For special containers or non-standard products, technical evaluation is recommended before final equipment configuration.

Production Automation

The FX01 can operate as a semi-automatic screen printing machine or be configured with additional automatic loading and unloading functions.

For production lines handling large quantities of similar products, automated material handling can reduce operator workload and improve consistency between production cycles. The PLC system stores and executes customized printing programs according to product requirements.

Suitable Materials

The machine is designed for printing applications involving plastic and glass bottles and other compatible products. Before production, the actual product material, surface condition, ink compatibility, shape, and printing requirements should be evaluated to determine the appropriate printing configuration.

Why Choose FX01?

• Suitable for regular and irregular product shapes

• 360° printing capability for suitable products

• PLC and touchscreen control

• Customized printing programs

• Four-axis synchronous servo structure

• Precise servo positioning

• ±0.1mm reference printing accuracy

• Φ10–Φ90mm article diameter range

• 15–220mm product height range

• 300mm printing stroke

• Suitable for plastic and glass bottles

• Suitable for flat products

• Optional automatic loading and unloading

• Supports higher-efficiency production

• Compact machine footprint

• Designed for customized B2B printing applications

B2B Supply & Customization

Shenzhen Kar Lee Keung Electronic Equipment Ltd. provides screen printing equipment for manufacturers requiring customized printing solutions for bottles, containers, and flat products.

For non-standard products, buyers can provide product drawings or samples, product dimensions, material information, printing area, required printing angle, artwork requirements, and expected production capacity. This information can be used to evaluate the suitable fixture, printing program, and machine configuration.

The FX01 is especially suitable for manufacturers looking for a flexible screen printing system capable of handling multiple product geometries rather than a single standardized container shape.

FAQ

Q1: What products can the FX01 print?
A: It is suitable for plastic and glass bottles as well as flat products. It can handle round, oval, square, rectangular, triangular, hexagonal, octagonal, and other irregular shapes.

Q2: Can the machine print around the entire product?
A: Yes. The machine supports 360° printing for suitable product configurations.

Q3: Does the FX01 support automatic loading and unloading?
A: Automatic loading and unloading functions are available as optional configurations to reduce labor and improve production efficiency.

Q4: What is the printing accuracy?
A: The reference printing accuracy is ±0.1mm, with the actual result depending on product dimensional accuracy and other application conditions.

Q5: What control system does the machine use?
A: The FX01 uses PLC control with a touchscreen display. Programs can be customized according to customer requirements.

Q6: What is the maximum product height?
A: The specified product height range is 15–220mm, while the article diameter range is Φ10–Φ90mm.

Q7: Can the machine be used for non-standard products?
A: Yes. The FX01 is specifically designed to accommodate various non-standard and irregular product shapes. Product samples or drawings are recommended for configuration evaluation.

Product Summary

The Semi Automatic Copying Screen Printing Machine FX01 combines four-axis servo synchronization, PLC touchscreen control, customized printing programs, 360° printing capability, and optional automatic loading and unloading in one flexible system.

With compatibility for plastic and glass bottles, flat products, and various irregular geometries, the FX01 provides a practical solution for manufacturers requiring precise and efficient screen printing across different product shapes. For customized equipment requirements and production line integration, Shenzhen Kar Lee Keung Electronic Equipment Ltd. can provide application-based technical support.
