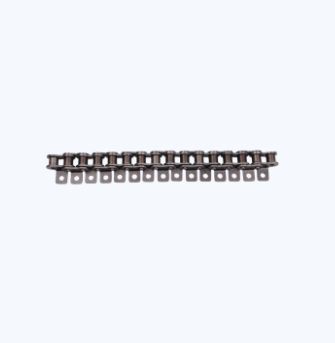

Single Hole One Side Attachment Chain

Description

Key Features of Single Hole One Side Attachment Chain

Single Mounting Hole on One Side

The attachment plate features one mounting hole on one side of the chain, providing a direct fixing point for a conveyor fixture or accessory.

Precision-Formed Attachment Plate

The attachment plate is manufactured according to the required dimensions. Hole diameter, hole position, plate width, plate height, and thickness can be adjusted according to the application.

Short Pitch Roller Chain Construction

The attachment is integrated with the underlying short pitch roller chain, making it suitable for conveyor systems using standard chain-and-sprocket transmission arrangements.

Heat-Treated Pins and Bushings

Heat-treated pins and bushings are used to support wear resistance and consistent chain performance during continuous operation.

Solid Rollers

Solid rollers support smooth chain movement and provide reliable engagement with the corresponding sprocket.

Pre-Stressed Assembly

Pre-stressing during assembly helps reduce initial chain elongation and supports consistent pitch during the early operating period.

Custom Attachment Configuration

The attachment structure can be adjusted according to customer requirements, including hole dimensions, plate dimensions, chain specification, material, surface treatment, and other specified parameters.

Applications of Single Hole One Side Attachment Chain

Automated Assembly Lines

The chain can be used to move components between assembly, inspection, testing, and processing stations. Fixtures and brackets can be connected through the single attachment hole according to the production line design.

Packaging Machinery

Packaging equipment may require attachment chains to move products, holders, guides, or dedicated fixtures through different processing stages. The one-side configuration can be useful where the machine layout provides limited space around the chain.

Automated Material Handling

The chain can be used to transport trays, containers, workpieces, components, and other products in automated handling systems.

The selected chain specification should take into account the product weight, carrier weight, conveying speed, operating cycle, and conveyor layout.

Product Pushing Systems

A single attachment point can be used to connect pushers or other simple conveying components. The attachment dimensions can be matched to the required pusher structure.

Electronic Component Conveying

Automated production equipment for electronic components may require compact fixtures and dedicated carriers. A one-side attachment can provide a convenient connection point while keeping the opposite side of the chain clear.

Space-Constrained Conveyor Systems

When the chain operates close to machine frames, guide rails, or other components, a one-side attachment may be more appropriate than a configuration with attachments on both sides.

Custom Single Hole Attachment Chain Manufacturing

Not every conveyor system uses the same attachment dimensions. For this reason, custom attachment chain manufacturing is an important part of the product.

Muyun can manufacture the attachment according to customer drawings, samples, technical specifications, or fixture dimensions. Depending on the project, customization can include:

• Chain pitch and size

• Attachment hole diameter

• Hole position

• Attachment plate width

• Attachment plate height

• Plate thickness

• Attachment frequency

• Chain length

• Chain material

• Surface treatment

• Lubrication requirements

For example, if an existing carrier uses a specific bolt size and mounting position, the attachment hole can be designed around that connection instead of requiring the customer to redesign the carrier.

This approach is particularly useful for OEM conveyor equipment, automated assembly machines, and replacement projects involving non-standard attachment dimensions.

How to Select the Right Single Hole Attachment Chain

Chain Pitch

The chain pitch should be confirmed first because it determines the basic chain dimensions and corresponding sprocket requirements.

Attachment Hole Diameter

The hole diameter should match the bolt, pin, or fastening component used for the connected fixture.

Hole Position

The location of the mounting hole should correspond to the carrier or bracket design. This is particularly important for custom conveyor equipment.

Attachment Plate Dimensions

Plate width, height, and thickness should be considered together with the fixture and surrounding conveyor structure.

Attachment Frequency

Some conveying systems require attachments on every chain link, while others may need attachments at specified intervals. The required attachment frequency should be confirmed before production.

Load and Conveyor Speed

The chain should be selected according to the conveyed load, carrier weight, conveyor speed, operating frequency, and working conditions.

Material and Surface Treatment

Standard steel can be suitable for general industrial applications, while stainless steel or specific surface treatments may be considered for environments requiring improved corrosion resistance.

Single Hole One Side vs. Other Attachment Chain Designs

Different attachment configurations are designed for different mounting requirements. The main differences are the number of mounting holes and whether attachment plates are installed on one or both sides of the chain.

Attachment Chain Type	Mounting Configuration	Typical Use
Single Hole One Side Attachment Chain	One hole on one side	Simple single-point mounting where the opposite side needs to remain clear
Double Hole One Side Attachment Chain	Two holes on one side	Fixtures or carriers requiring two fixing points on one side
Single Hole Both Sides Attachment Chain	One hole on each side	Applications requiring a mounting point on both sides
Double Hole Both Sides Attachment Chain	Two holes on both sides	Fixtures requiring multiple mounting points and two-sided attachment

The single hole one side attachment chain is suitable when the fixture only requires one mounting point and the conveyor layout benefits from keeping the opposite side free. When two fixing points are needed on the same side, the double-hole one-side configuration provides a different mounting arrangement. For applications requiring attachments on both sides, a both-sides configuration can be selected according to the carrier and equipment design.

For custom conveyor equipment, the attachment hole dimensions, plate configuration, and attachment frequency can be specified according to the actual fixture requirements.

Material and Surface Treatment Options

Material selection depends on the operating environment and conveyor requirements.

Standard steel construction can be used for many general industrial conveying applications. Stainless steel can be considered when improved corrosion resistance is required.

Surface treatment options may include nickel plating, black oxide, and other treatments according to the application requirements.

Lubrication can also be specified according to the operating environment, working temperature, contamination conditions, and maintenance requirements.

The material and surface treatment should be selected based on actual operating conditions rather than treated as universal specifications for every application.

Quality Control and Manufacturing

Attachment chain production requires dimensional control of both the base chain and the attachment plate.

Muyun operates under an ISO 9001 quality management system and applies material traceability and dimensional verification during production. Key attachment dimensions can be checked according to the confirmed product specification.

For customized orders, particular attention is given to hole diameter, hole position, plate dimensions, chain pitch, and attachment configuration because these dimensions directly affect compatibility with the customer's fixture.

Consistent manufacturing is especially important for OEM applications where multiple chains need to work with the same carrier and conveyor structure.

Why Choose Muyun Chain?

Muyun is a specialized chain manufacturer based in Kunshan, China, focusing on conveyor chains, attachment chains, double plus chains, roller chains, and customized chain products.

For single hole attachment applications, the company can support both standard configurations and application-specific requirements. Customers can specify the attachment dimensions together with the underlying chain rather than selecting only from a fixed product configuration.

Manufacturing support includes:

• Custom attachment dimensions

• Custom hole diameter and position

• Different chain specifications

• Stainless steel options

• Surface treatment options

• OEM production

• Replacement chain manufacturing

• Material traceability

• Dimensional verification

For customers purchasing customized conveyor components, this manufacturing approach allows the chain attachment to be matched to the actual carrier and machine design.

As an attachment chain supplier, Muyun can also evaluate existing samples and drawings for replacement or reproduction projects.

Maintenance and Installation

Before installation, confirm that the chain specification, sprocket, attachment plate, and connected fixture match the approved dimensions.

The attachment fastener should be properly installed and checked during routine maintenance. Loose fasteners can affect the stability of connected fixtures even when the chain itself continues to operate normally.

Regular inspection should cover:

• Chain elongation

• Roller condition

• Pin and bushing wear

• Lubrication

• Sprocket condition

• Attachment plate deformation

• Fastener tightness

• Conveyor alignment

If excessive noise, vibration, uneven movement, or rapid elongation occurs, inspect the chain, sprocket alignment, load, lubrication, and attachment components.

Request a Custom Single Hole One Side Attachment Chain Quote

If your conveyor requires a single mounting hole on one side of the chain, Muyun can manufacture the attachment chain according to your chain specification and fixture requirements.

Send your chain model, pitch, attachment hole dimensions, plate size, required quantity, or existing sample and drawing. Muyun can evaluate the configuration and provide a suitable custom attachment chain solution for your conveyor or automated handling equipment.
