Description
Product Overview

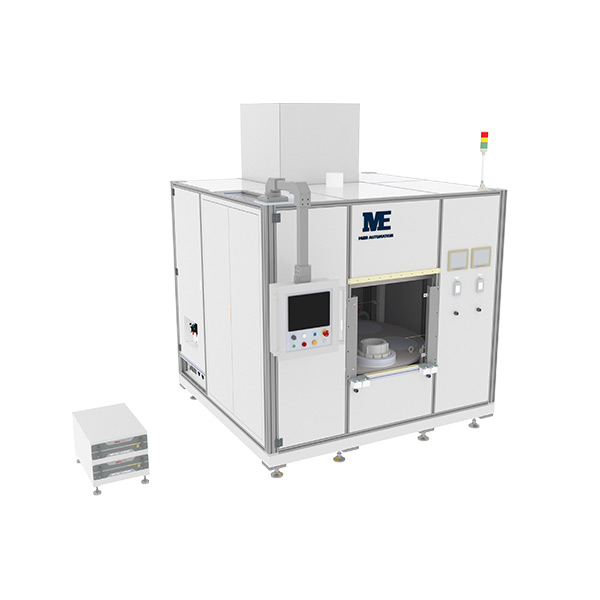

The Stator Welding Machine is a laser welding solution developed for motor stator manufacturing, supporting key processes such as stator core lamination welding, copper winding connection welding, and lead wire welding. By using precise laser energy, the machine delivers high weld strength while maintaining a small heat affected zone, making it suitable for applications where dimensional accuracy and material integrity are important.
Designed for new energy vehicle motors, industrial motors, home appliance motors, generators, and power tools, this equipment can be integrated with automated fixtures and rotary positioning systems to support efficient and consistent production.
Optimized for Motor Stator Welding
Motor stators often involve different materials and structures, including laminated silicon steel sheets, copper windings, and lead wires. Each welding process requires controlled heat input to avoid excessive deformation or damage to surrounding components.
This stator welding machine can be configured for different stator welding requirements, including circumferential welding of laminated cores and welding of copper winding ends. Dedicated fixtures help maintain workpiece positioning throughout the process, supporting repeatable welding results during production.
High Weld Strength With Precise Heat Control
Laser welding concentrates energy within a small processing area, allowing manufacturers to achieve controlled penetration and a high depth-to-width weld ratio.
The reduced heat affected zone helps limit unnecessary thermal influence on the stator material. This is particularly useful when welding silicon steel laminations or copper components where excessive heat may affect insulation, material properties, or dimensional accuracy.
Laser parameters can be adjusted according to material thickness, joint configuration, and production requirements.
Efficient Welding for Mass Production
For high-volume motor manufacturing, welding efficiency and repeatability are critical. The machine can work with automated clamping fixtures and precision rotary axes to support continuous circumferential welding.
The rotary positioning system enables the stator to move accurately during processing, while stable laser output helps maintain consistent weld quality across production batches.
This configuration can reduce manual intervention and provide a more organized workflow for automated stator production lines.
Non-Contact Laser Processing
Unlike conventional mechanical joining processes, laser welding is a non-contact process. The laser beam transfers energy directly to the welding area without applying mechanical pressure to the workpiece.
This helps reduce mechanical deformation and surface scratches while allowing the welding head to access specific joints with high precision. For stator components requiring controlled positioning and clean processing, non-contact welding can provide useful production advantages.
Fiber Laser and Precision Welding Technology
The stator welding machine integrates a high-performance fiber laser featuring high beam quality and efficient electro-optical conversion. The laser source can be selected according to the material and thickness requirements of the stator components.
A dedicated clamping fixture and precision rotary axis work together to maintain stable positioning during welding. The system can also support real-time welding monitoring and production data acquisition, providing useful information for process control and quality management.
Consistent Weld Quality
Consistency is essential when stators are produced in large quantities. Variations in welding position, energy input, or workpiece clamping can affect final motor performance.
By combining controlled laser parameters, dedicated fixtures, stable positioning, and process monitoring, the machine is designed to maintain uniform weld results across repeated production cycles.
The welding parameters can be adjusted according to different stator designs, materials, joint structures, and production requirements.
Applications
The Stator Welding Machine can be applied across a range of motor manufacturing processes, including:
-
New energy vehicle drive motor stator welding
-
Industrial servo motor stator production
-
Home appliance motor manufacturing
-
Generator stator core lamination welding
-
Power tool motor production
-
Customized special-purpose motor manufacturing
-
Silicon steel lamination welding
-
Copper winding end welding
-
Stator lead wire welding
Its flexible configuration makes it suitable for both standard motor production and customized stator welding applications.
Built for Automated Stator Production
For manufacturers developing automated motor production lines, the machine can be combined with fixtures, rotary positioning, laser sources, monitoring systems, and other automation equipment.
This allows the welding process to be adapted to different stator geometries and production volumes. Automated positioning also helps reduce operator-dependent variation and supports a more consistent manufacturing process.
A Practical Laser Welding Solution for Motor Manufacturers
Choosing the right stator welding machine requires more than evaluating laser power. Material type, welding structure, penetration requirements, fixture design, rotary positioning, heat input, production speed, and quality monitoring all need to be considered together.
The Mien Stator Welding Machine is designed around these requirements, providing a combination of precise laser processing, controlled heat input, non-contact welding, automated positioning, and production monitoring.
For manufacturers producing new energy, industrial, home appliance, generator, and power tool motors, it provides a flexible foundation for improving stator welding efficiency and maintaining consistent production quality.
