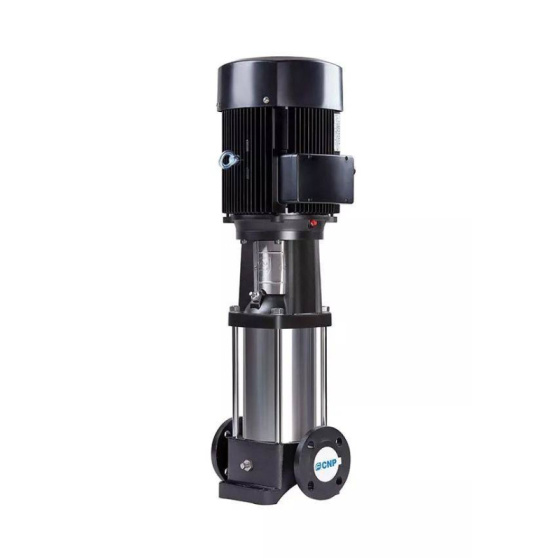

CDL/CDLF Lightweight vertical centrifugal pump

Description

The CDL/CDLF Series Lightweight Stainless Steel Vertical Multi-Stage Centrifugal Pump is a non-self-priming vertical pump developed for water supply, circulation and various fluid transfer applications. Its compact vertical configuration helps reduce installation space while providing stable hydraulic performance.

The pump incorporates advanced hydraulic design and manufacturing technology and is equipped with a standard vertical motor and quick-installation mechanical seal. The mechanical seal can be replaced conveniently during maintenance. The series can serve as an alternative to comparable imported products such as CR and CRN.

Main Performance Range

• Flow Rate: 4.9-200 m³/h

• Lift: 24-200 m

• Diameter: 40-100 mm

• Material Options: Cast Iron / Stainless Steel

The vertical multi-stage construction allows the pump to achieve different flow and lift requirements through various model configurations. Its lightweight structure also simplifies transportation, installation and routine maintenance.

Construction & Design

• Vertical, space-saving pump configuration

• Multi-stage centrifugal hydraulic design

• Standard vertical motor configuration

• Quick-installation mechanical seal

• Cast iron and stainless steel material options

• Compact overall structure

• Lightweight construction

• Low operating noise

• Reduced energy consumption

• Convenient maintenance

The CDL/CDLF series is suitable for both new equipment installations and replacement or retrofit projects where reliable fluid transfer is required within a limited installation area.

Product Features

Optimized Hydraulic Design

The pump uses optimized hydraulic models together with advanced manufacturing processes to improve operating performance and support longer service life.

Reliable Mechanical Seal

The mechanical seal uses an alloy silicon carbide sealing face, while the auxiliary sealing ring is made from fluororubber. This configuration helps improve operating reliability and allows the pump to handle higher-temperature conveying conditions.

Stainless Steel Wetted Components

The pump's flow-passage components are manufactured from stamped and welded 304 stainless steel or 316 stainless steel plates. This construction allows the pump to be used for mildly corrosive media.

Compact and Lightweight Construction

The vertical configuration minimizes the required installation footprint. Its compact size and lightweight construction make handling and installation easier, while the design also contributes to lower operating noise and energy consumption.

Pipeline-Compatible Connections

The pump inlet and outlet are positioned on the same horizontal line as the pump base. This configuration allows the pump to be installed directly within a pipeline system.

Standard Motor

The use of a standard motor provides greater flexibility for users who need to configure the motor according to their specific application requirements.

Applicable Media & Applications

The CDL/CDLF series can be used for conveying thin, clean, non-flammable and non-explosive liquids that do not contain solid particles or fibers.

Typical media include:

• Mineral water

• Softened water

• Pure water

• Clear oil

• Light chemical media

• Other similar clean liquids

The stainless steel construction also allows applicable models to handle mildly corrosive media.

Model Variations

SDL Type

The SDL type is a standard vertical multi-stage pump designed for conveying non-corrosive clean water or liquids with a similar specific gravity.

• Medium Temperature: ≤ 80℃

• Suitable for non-corrosive clean water

• Applicable to liquids with similar specific gravity

• Floor fire protection systems

• Domestic water supply

• Cooling water circulation

• Air-conditioning unit circulation systems

SDLR Type

The SDLR type is designed for higher-temperature liquid transfer applications involving non-corrosive clean water or liquids with similar specific gravity.

• Medium Temperature: ≤ 150℃

• Suitable for heating circulation systems

• Condensate water transfer

• Other applicable high-temperature clean-water applications

SCDL Type

The SCDL type is a stainless steel vertical multi-stage pump intended for conveying corrosive liquids.

Its stainless steel construction provides the material characteristics required for applications where greater resistance to corrosion is needed.

Performance Parameters

CDL(F)1 Series

Model	Motor Power (kW)	Flow (m³/h)	0.4	0.6	0.8	1.0	1.2	1.4	1.6	1.8	2.0
CDL1-2	0.37	Lift (m)	13	12.5	12	11.5	11	10.5	10	9.5	9
CDL1-3	0.37	Lift (m)	19	18	17.5	17	16.5	16	15	14	12
CDL1-4	0.37	Lift (m)	24	23.5	23	22.5	21.5	21	19	18	16
CDL1-5	0.37	Lift (m)	30	29.6	29	28	27	26	24	22	20
CDL1-6	0.37	Lift (m)	36	35.5	35	33.5	33	31	28	26	23
CDL1-7	0.37	Lift (m)	42	41	40.5	39	38	36	33	30	27
CDL1-8	0.55	Lift (m)	48	47	46	45	43	41	38	34	30
CDL1-9	0.55	Lift (m)	54	53	52	51	49	46	43	39	33
CDL1-10	0.55	Lift (m)	60	59	58	57	54	51	48	43	36
CDL1-11	0.55	Lift (m)	66	65	63	61	59	56	52	47	40
CDL1-12	0.75	Lift (m)	72	71	69	67	64	61	57	51	44
CDL1-13	0.75	Lift (m)	78	77	75	73	69	66	62	55	47
CDL1-15	0.75	Lift (m)	89	88	86	84	79	76	71	63	55
CDL1-17	1.1	Lift (m)	101	99	97	95	89	86	80	71	62
CDL1-19	1.1	Lift (m)	113	110	108	106	99	96	89	79	69
CDL1-21	1.1	Lift (m)	124	122	120	117	110	106	98	87	75
CDL1-23	1.1	Lift (m)	137	133	131	128	121	116	107	96	82
CDL1-25	1.5	Lift (m)	149	145	143	139	131	126	116	104	89
CDL1-27	1.5	Lift (m)	161	157	155	150	141	136	125	112	95
CDL1-30	1.5	Lift (m)	178	175	171	166	157	150	139	124	106
CDL1-33	2.2	Lift (m)	196	192	188	183	173	165	154	137	118
CDL1-36	2.2	Lift (m)	214	210	205	200	190	181	169	151	130

Selection Reference

The CDL(F)1 series provides multiple stage configurations to accommodate different lift requirements while maintaining the same general flow range. Users can select the appropriate model according to required flow, lift, liquid characteristics, installation conditions and motor requirements.

For applications involving higher temperatures or corrosive liquids, the SDLR and SCDL configurations provide corresponding material and operating-condition options.
